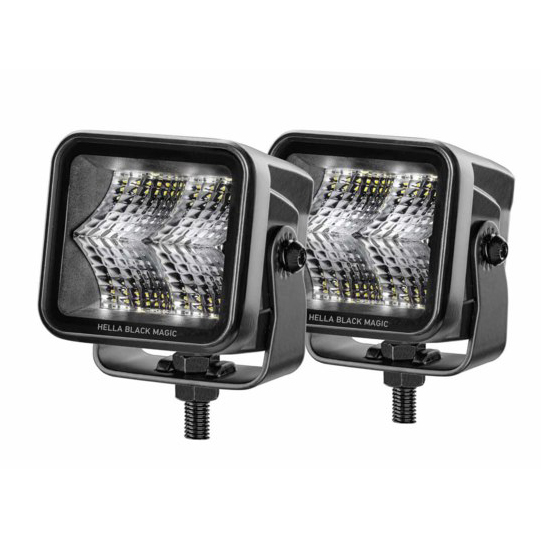

Hella 1FA 358 176-801 LED Headlight Black Magic Cube Kit (Quantity: 2) 2.7″ – 12/24V

The HELLA Black Magic Cube Kit delivers exceptional performance and striking looks for off-road enthusiasts. Designed with a sleek, full-black finish, these compact LED cubes provide powerful illumination while maintaining a refined, modern appearance.

Built to handle extreme conditions, the Black Magic Cubes boast the industry’s highest dust and waterproof ratings (IP68 / IP69K). Each kit includes two 2.7-inch LED lights, a wiring harness with DT connectors, a switch, connectors, and relays—ensuring straightforward installation.

Perfect for off-road driving, these lights can be mounted upright or pendant, or integrated seamlessly into vehicle bodywork or bumpers.

The Hella LED Headlight Cube Kit 3.2″ is available in Flood or Spot light versions and can be mounted either upright or pendant or integrated into the body work or bumper.

Key Features

• LED high-beam cubes with full blackout appearance, including black brackets
• Streamlined design prevents dust and dirt build-up
• Easy installation with included wiring harness, DT connectors, relays, and switch
• Compact and versatile for universal mounting

Specifications

• Light output: 1,400 lumens (Flood beam)
• 4 high-intensity LEDs
• Die-cast aluminium housing with black stainless steel bracket
• Voltage: 10–30V DC (multivolt)
• Power consumption: 20 W
• Current draw: 1.8 A (12V) / 0.9 A (24V)
• Colour temperature: 5,700 K
• Cable length: 500 mm with DT connector and adapter harness
• Weight: 350 g per unit
• Protection class: IP68 / IP69K
• EMC protection: ECE-R10 certified

Dimensions

• 70 x 72 x 60 mm (2.7″ W x 2.8″ H x 2.4″ D)

Included in Kit

2 LED floodlights, 1 relay, 1 switch, 1 wiring harness with DT connector, Mounting hardware and instructions.

Installation Manual and Data Sheet
