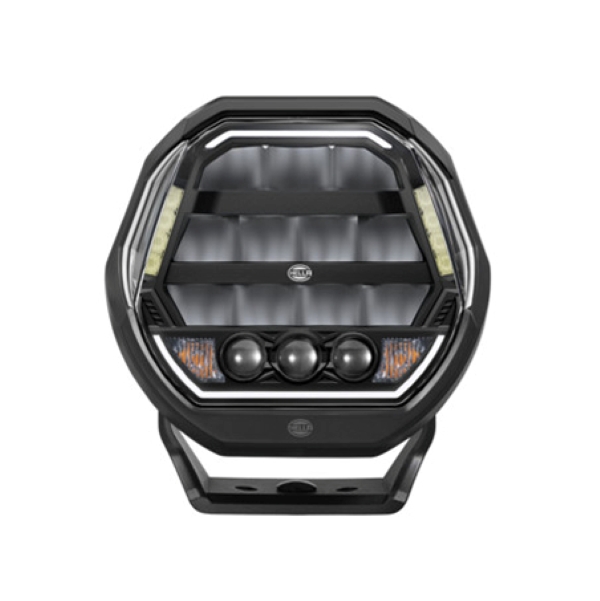

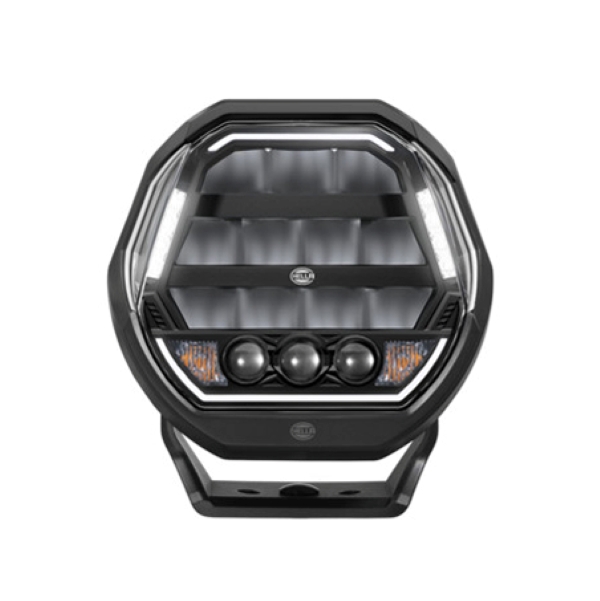

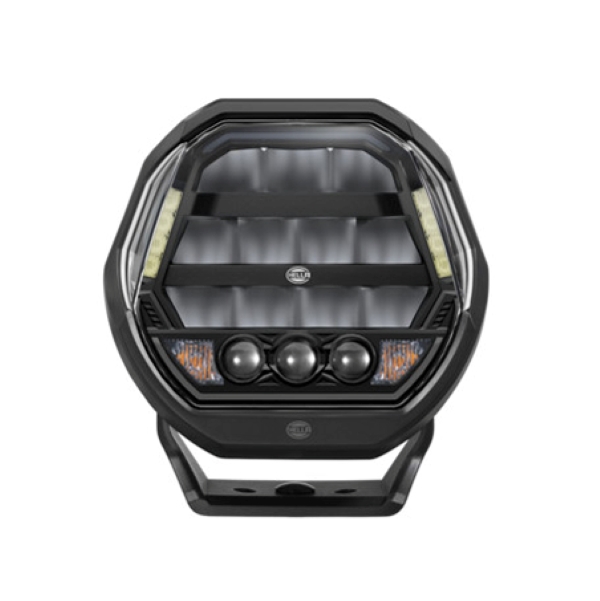

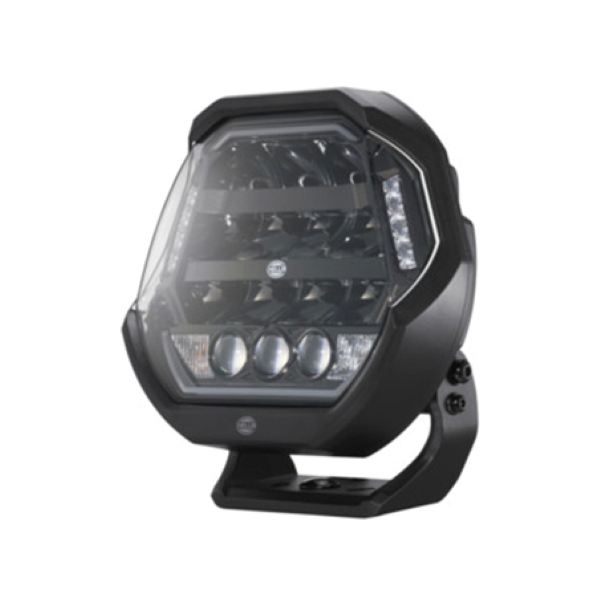

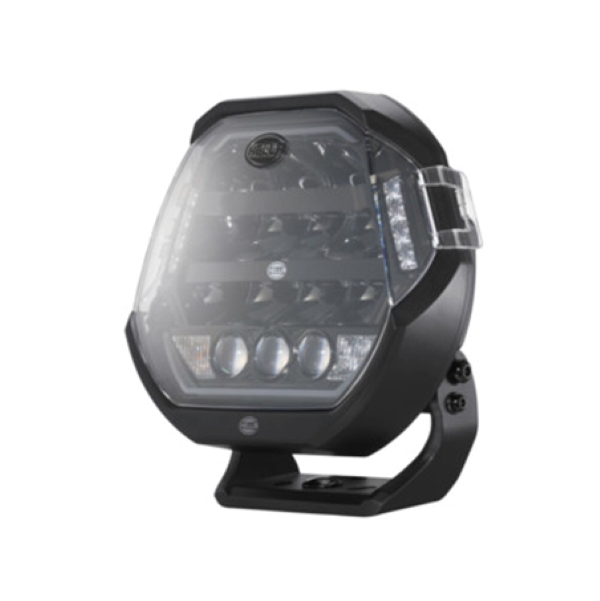

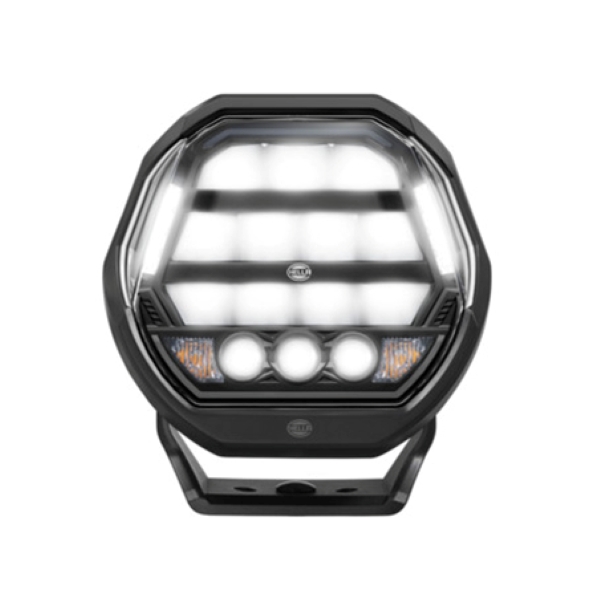

Hella 1F9358228-891 LED High Beam Headlight Antares FF 9″ with Flasher 12/24V 2700lm
The Antares FF 9″ LED Auxiliary Headlight with Flasher combines powerful high-beam illumination with integrated position, daytime running and hazard warning functions. Its free-space reflector technology provides a wide, uniform beam, while High Boost mode delivers up to 10,200 lumens for enhanced visibility on and off the road. The robust aluminium housing, polycarbonate lens and IP67/IP69K protection make it suitable for demanding applications.
Technical Spec
| Dimensions | 225 × 206 × 105 cm |
|---|
Competitive Pricing
Cost-effective solutions
Quality Products
Trusted quality
Industry Knowledge
30+ years of experience
Customer Driven
Tailored solutions
Hella 1F9358228-891 LED High Beam Headlight Antares FF 9″ with Flasher 12/24V 2700lm
The Antares FF 9″ with hazard warning function combines powerful high beam technology with an additional safety feature. Modern open-space reflector technology ensures a uniform, wide-ranging light pattern, while high-boost mode with up to 10,200 lumens provides maximum visibility at night. In addition to the high beam headlamp in accordance with ECE-R149, this variant offers a white position light in accordance with ECE-R148 or a yellow position light for off-road use, supplemented by a welcome and goodbye light function and integrated daytime running lights. The hazard warning flash function comprises a total of 12 flash patterns, 2 of which comply with ECE-R65 and 10 of which are variable patterns. The black anodised aluminium housing, polycarbonate lens and IP67/IP69K protection ratings ensure reliable operation under extreme operating conditions.
Technical Information
- Voltage: 10–30V DC
- Light output (effective): High beam headlamp – 2700 lm. High-boost – 10,200 lm.
- Rated Power: 249 W
- High Beam Output: Up to 10,200 lm in High Boost mode
- Light Distribution: Spot Illumination

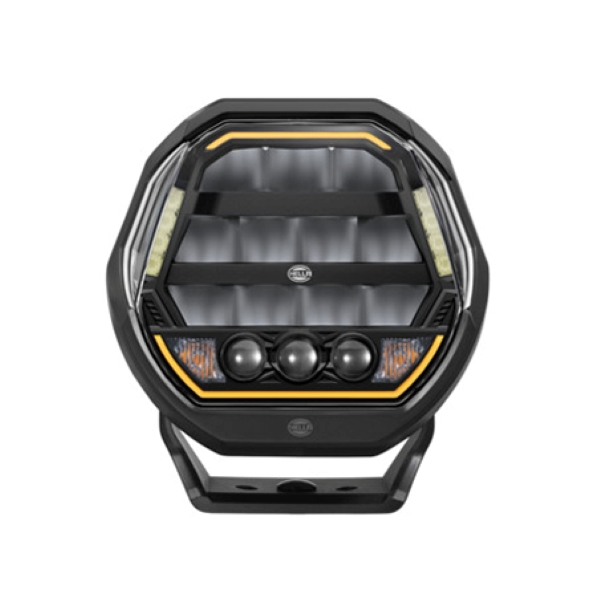

- Position Light: White or yellow/amber

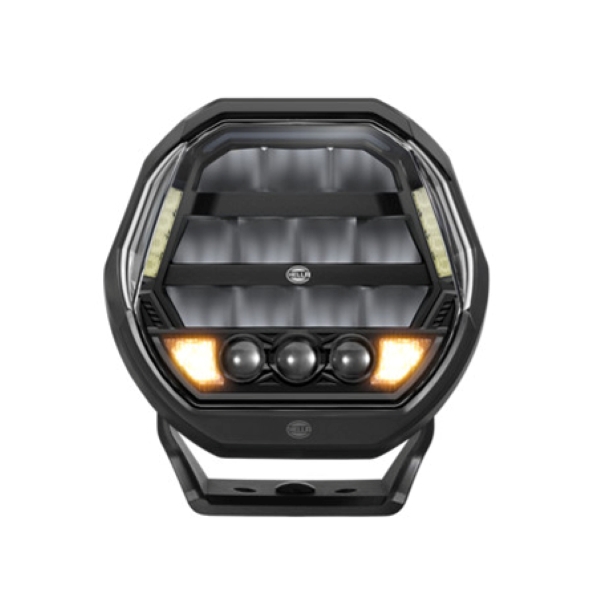

- Hazard Warning: 12 flash patterns, including 2 ECE-R65 compliant patterns
- Approvals: ECE R10, CISPR 25 Class 3, R148, R149 and R65
- Protection Rating: IP67 / IP69K
- Housing Material: Anodised aluminium
- Housing Colour: Black
- Lens Material: Polycarbonate (PC)
- Lens Colour: Crystal clear
- Mounting Type: Bracket
- Fastening Type: Screw-on
- Cable Length: 1500mm
- Plug Type: DEUTSCH plug
- Application: Truck and off-road vehicles
- Reference number: 45.
Light Function

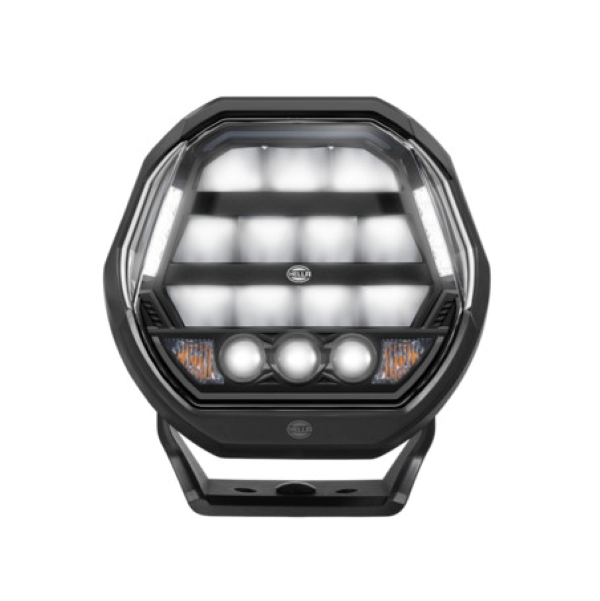

- High-boost
- with high beam (LED)
- with position light (LED)
- with daytime running light (LED)
- with flashing warning signal
- with coming home function
- with leaving home function
| Dimensions | 225 × 206 × 105 cm |
|---|---|
| Brand | Hella |
