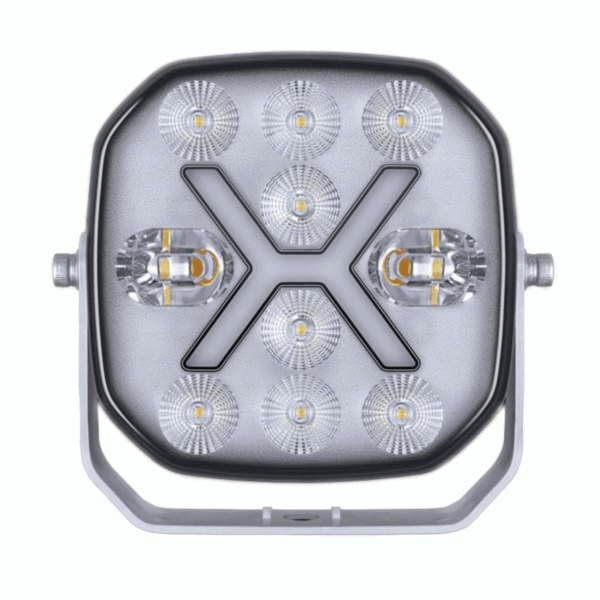

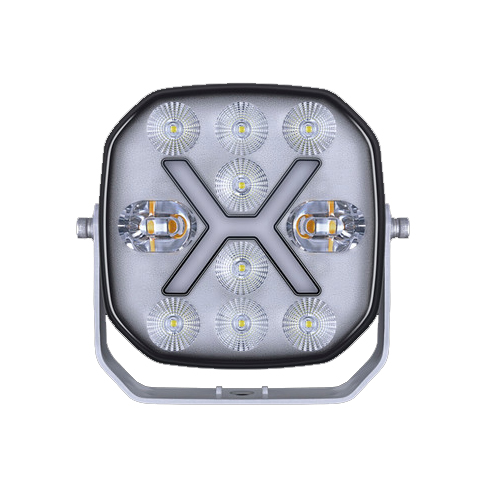

Hella SPF2200 X-Factor Multifunction LED Work Lamp

The HELLA SPF2200 is a powerful LED work lamp with an impressive 2,200 lumen light output. It combines a day and night warning flash and position light in white and red in a single product, making it the perfect choice for mounting at the rear of lorries and agricultural machinery.

The robust, die-cast aluminium housing, the impact-resistant lens and the IP 6K7 / IP 6K9 protection class ensure exceptional durability under demanding conditions. The flexible mounting, upright or pendant, opens up numerous application possibilities. Thanks to ADR approval, the HELLA SPF2200 can be used for a wide range of applications.

This work lamp is intended exclusively for off-road use, outside of public road traffic.

Features

• Multifunctional, robust work lamp for close-range illumination
• With additional warning flash function (ECE R65*) and position light (white & red)
  in a single housing
• Robust design: protection class IP 6K7 / IP 6K9, die-cast aluminium housing and
  impact-resistant polycarbonate lens
• Complies with ECE R10 (EMC: CISPR 25 Class 3), ADR/GGVSEB

Tehnical Information

• Operating voltage range: Multi-voltage (10 to 30 V)
• Light output (effective): 2,200 lm
• Light function: Close-range illumination
• Colour temperature: 5,700 K
• Temperature range: -40 °C to +65 °C
• Protection class: IP 6K7, IP 6K9
• Mounting: Upright and pendant
• Connection: 1,000 mm cable with open ends

Power consumption:

• Work lamp: 22 W
• Position light, white: 3.4 W
• Position light, red: 3.6 W
• Warning flash function: 9.7 W

Materials:

• Lens: PC
• Housing: Aluminium
• Mounting bracket: Stainless steel

Approvals:

• ECE R10
• Warning flash function: ECE R65 for vehicles in accordance with ECE R86
• ADR / GGVSEB
• EMC CISPR 25 Class 3
