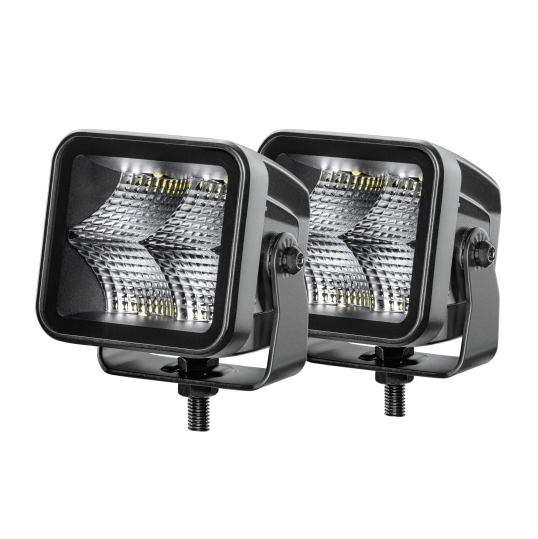

Hella 1FA 358 176-811 LED Headlight Cube Kit (Quantity: 2) 3.2″ – 12/24V

The HELLA Black Magic Cube Kit in 3.2″ size combines high-performance LED lighting with a striking full-black design. Engineered for off-road use, these cubes deliver powerful illumination while remaining compact and stylish.

Please Note - All product images are for illustration purposes only. Actual product will vary depending on the specifications of the product selected.

Add to quote

SKU: 1FA358176-811 Category: Forward Lighting

Description

Hella 1FA 358 176-811 LED Headlight Cube Kit (Quantity: 2) 3.2″ – 12/24V

Built to withstand extreme conditions, the Black Magic Cubes feature the highest industry ratings for dust and water resistance (IP68 / IP69K). Each kit includes two LED lights, a wiring harness with DT connector, relay, switch, and mounting hardware for simple installation.

Key Features

• High-intensity LED cubes with full blackout finish and black brackets
• Streamlined design prevents dust and dirt accumulation
• Complete installation kit including wiring harness, DT connectors, relay, and switch
• Compact and versatile for universal mounting
• Mounting: Upright / Pendant
• For off driving only

Specifications

• Light output: 3,000 lumens (Flood beam)
• 4 high-intensity LEDs
• Die-cast aluminium housing with black stainless steel bracket
• Multivolt: 10–30V DC
• Power consumption: 40 W
• Current draw: 3.4 A (12V) / 1.6 A (24V)
• Cable length: 500 mm with DT connector and adapter harness
• Colour temperature: 5,700 K
• Weight: 358 g per unit
• Protection class: IP68 / IP69K
• EMC protection: ECE-R10 certified

Dimensions

81 x 83 x 68 mm (3.2″ W x 3.3″ H x 2.7″ D)

Included in Kit

2 LED spotlights, 1 relay, 1 switch, 1 wiring harness with DT connector, Mounting hardware and instructions

Installation Manual and Data Sheet

For detailed installation and specifications, please refer to the Installation Manual and Data Sheet.

Additional information

Brand	Hella
Voltage	12V / 24V
LED	4 pcs LED
Light Output	3000 Lumens
ECE Approvals	IP68 , IP69K , R10
