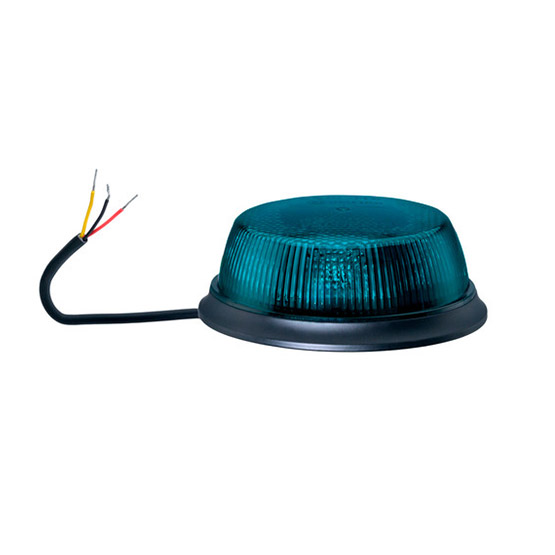

Hella ValueFit SLIM Green Beacon
This HELLA ValueFit SLIM Green beacon with magnetic mounting combines maximum flexibility with powerful performance. Ideal for temporary or various locations, it can be mounted quickly and easily thanks to the cigarette lighter connection. The amber variant is ECE R10 and ECE R65 TA1 certified and SAE Class 1 compliant. 12 LEDs with rotating and double-flashing light pattern provide an eye-catching light signal. The impact-resistant polycarbonate and the protection against high-pressure jet cleaning (IP67/IP69K) make it a robust solution for mobile applications up to 120 km/h.
Technical Spec
| LED Colour | Green |
|---|---|
| Housing Material | Aluminium |
| Lens Material | Polycarbonate |
| Mount | 1 Bolt |
| ECE Approvals | CISPR25, Class 3, IP67, IP69K, R10, R65 |
Competitive Pricing
Cost-effective solutions
Quality Products
Trusted quality
Industry Knowledge
30+ years of experience
Customer Driven
Tailored solutions
Hella ValueFit SLIM Green Beacon
The HELLA ValueFit SLIM Green Beacon is designed specifically for the construction vehicle aftermarket, offering a modern and slim profile that enhances vehicle aesthetics while ensuring reliable functionality. The green lens is certified under ECE-R10 and SAE J845 Class 3, making it suitable for specialised warning applications on construction and service vehicles.
Packaged in standard HELLA ValueFit packaging, the beacon is available in two mounting styles. The spigot (single bolt) version has a compact height of 43 mm, while the magnet-mounted variant stands at 51 mm. Both options provide a cohesive and compatible look for construction vehicles. The aluminium base supports effective heat dissipation, and the impact-resistant polycarbonate lens ensures long-term durability.
The beacon includes overvoltage and electronic protection to guard against electrical surges, while IP67 and IP69K ratings ensure protection during high-pressure cleaning. Engineered magnets withstand vibration levels of up to 5.8 G and 3.8 G in various directions, making the magnet base version suitable for vehicles operating at speeds of up to 120 km/h.
Features:
- Safe: EMC-compliant (CISPR 25 Class 3) with surge and interference protection
- Flexible: Available in spigot and magnet mounting options
- Durable: Slim design with aluminum base, polycarbonate lens, and IP67/IP69K protection
Technical information:
- Number of LEDs: 12
- Power consumption: 24W
- Light functions: 2 – With rotating warning signal/Double flasher – Lens Colour: green
- Housing material: Aluminium. Housing Colour: black. Diffusing Lens Material: PC (Polycarbonate)
- Height: 43.5mm
- Rotating and double flash with 12 LEDs
- ECE R10 and ECE R65 TA1 tested, SAE Class 1
- Compliant: CISPR 25 Class 3
- Protection class: IP67 / IP69K
| Brand | Hella |
|---|---|
| LED Colour | Green |
| Housing Material | Aluminium |
| Lens Material | Polycarbonate |
| Mount | 1 Bolt |
| ECE Approvals | CISPR25, Class 3, IP67, IP69K, R10, R65 |
