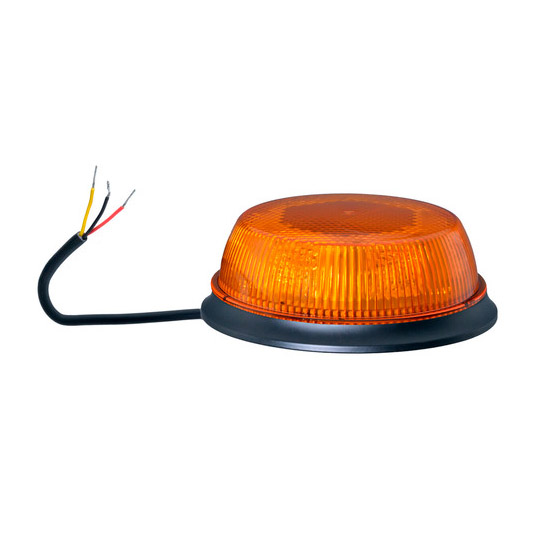

Hella ValueFit SLIM Amber Beacon
The HELLA ValueFit SLIM Amber beacon with pin mounting (bolt) was developed for retrofitting to construction and commercial vehicles. Thanks to its flat design and robust aluminium housing, it fits perfectly into the vehicle design. This amber beacon model is ECE R10 and ECE R65 TA1 certified and fulfils the requirements of SAE Class 1. With 12 LEDs, and a rotating and double-flashing light pattern, it guarantees a reliable warning effect. The IP67 and IP69K protection classes and also the overvoltage protection ensure a high degree of durability. The compact height of 43Â mm makes the lamp particularly easy to mount.
Technical Spec
| LED Colour | Amber |
|---|---|
| Housing Material | Aluminium |
| Lens Material | Polycarbonate |
| Mount | 1 Bolt |
| ECE Approvals | CISPR25, Class 3, IP67, IP69K, R10, R65 |
Competitive Pricing
Cost-effective solutions
Quality Products
Trusted quality
Industry Knowledge
30+ years of experience
Customer Driven
Tailored solutions
Hella ValueFit SLIM Amber Beacon
The HELLA ValueFit SLIM Amber Beacon is designed specifically for the construction vehicle aftermarket, offering a modern and slim profile that enhances vehicle aesthetics while ensuring reliable functionality. The amber lens is fully compliant with European and American road standards, making it suitable for a wide range of construction and utility vehicles.
Packaged in standard HELLA ValueFit packaging, the beacon is available in two mounting styles. The spigot (single bolt) version has a compact height of 43 mm, while the magnet-mounted variant stands at 51 mm. Both options provide a cohesive and compatible look for construction vehicles. The aluminium base supports effective heat dissipation, and the impact-resistant polycarbonate lens ensures long-term durability.
The beacon includes overvoltage and electronic protection to guard against electrical surges, while IP67 and IP69K ratings guarantee protection during high-pressure cleaning. It also features CISPR 25 Class 3 EMC compliance, providing protection against communication interference. Engineered magnets withstand vibration levels up to 5.8 G and 3.8 G in various directions, making the magnet base version suitable for vehicles operating at speeds of up to 120 km/h.
Features:
- Certified: Amber version approved for both EU and U.S. roads
- Safe: EMC-compliant (CISPR 25 Class 3) with surge and interference protection
- Flexible: Available in spigot and magnet mounting options
- Durable: Slim design with aluminum base, polycarbonate lens, and IP67/IP69K protection
Technical information:
- Number of LEDs: 12
- Power consumption: 36W
- Light functions: 2 – With rotating warning signal/Double flasher – Lens Colour: yellow (amber)
- Housing material: Aluminium. Housing Colour: black. Diffusing Lens Material: PC (Polycarbonate)
- Height: 43.5mm
- Rotating and double flash with 12 LEDs
- ECE R10 and ECE R65 TA1 tested, SAE Class 1
- Compliant: CISPR 25 Class 3
- Protection class: IP67 / IP69K
| Brand | Hella |
|---|---|
| LED Colour | Amber |
| Housing Material | Aluminium |
| Lens Material | Polycarbonate |
| Mount | 1 Bolt |
| ECE Approvals | CISPR25, Class 3, IP67, IP69K, R10, R65 |
