Hella Strobe-type LED Beacon Slim ICAO 12/24V Amber – Magnet Mount

The HELLA SLIM Amber Beacon with Magnet Base is designed specifically for airport vehicles, offering a sleek and slim profile. This beacon combines a strong price to quality ratio with ICAO approval, making it ideal for vehicles operating in airports. Engineered to provide effective interference protection with CISPR 25 Class 5 level, it ensures immunity to all kinds of communication interference.

Please Note - All product images are for illustration purposes only. Actual product will vary depending on the specifications of the product selected.
Add to quote
SKU: 2XD357980-041 Category:
Description

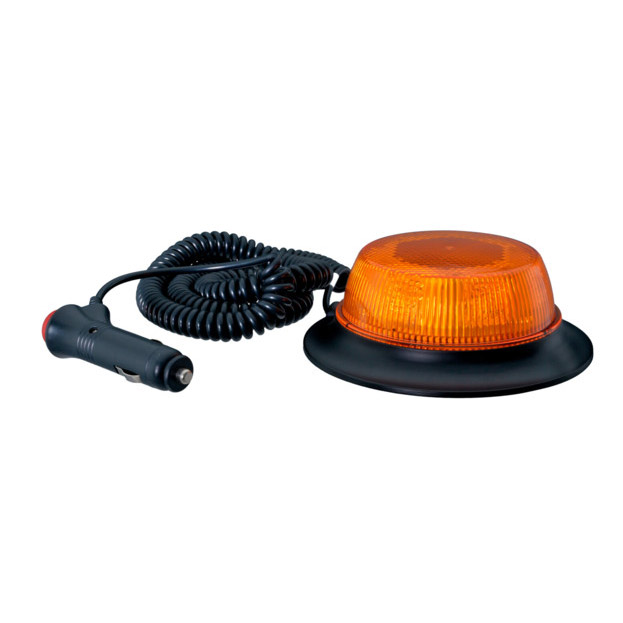

Hella Strobe-type LED Beacon Slim ICAO 12/24V Amber – Magnet Mount

LED-Strobe-type Beacon – Slim ICAO – 12/24V – yellow (amber) – Magnet Mount – Cable: 3200mm – Plug: Round Plug

The HELLA SLIM Amber Beacon with Magnet Base is designed specifically for airport vehicles, offering a sleek and slim profile that facilitates easy mounting and unmounting. This beacon combines a strong price to quality ratio with ICAO approval, making it ideal for vehicles operating in airports. Engineered to provide effective interference protection with CISPR 25 Class 5 level, it ensures immunity to all kinds of communication interference.

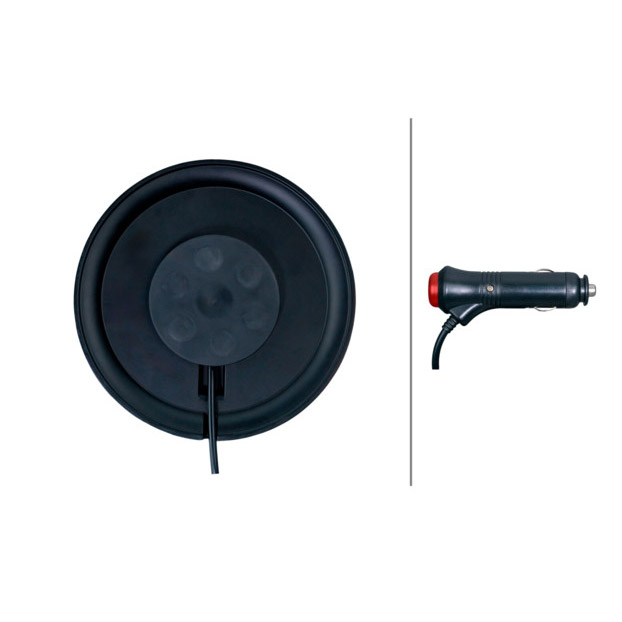

Packaged in standard HELLA packaging, the beacon has a height of 51 mm with a magnet base, providing a compatible look for airport vehicles. The aluminium base ensures good heat dissipation, while the polycarbonate amber lens offers durability. Overvoltage and electronic protection safeguard against sudden spikes, and IP67/IP69K protection guarantees a high degree of protection during high pressure jet cleaning. The magnets withstand vibration levels of up to 5.8 G and 3.8 G in both directions, making the beacon suitable for vehicles not exceeding 120 km/h.

Features:

  • ICAO certified: Complies with international standards for airport vehicles.
  • Light functions: 1 – With flashing warning signal – Lens Colour: yellow (amber)
  • Robust design with aluminium base and polycarbonate lens
  • Effective overvoltage and electronic protection
  • Vibration resistance up to 5.8 G and 3.8 G in both directions
  • Suitable for vehicles not exceeding 120 km/h
  • Compatible look for airport vehicles with a slim, low-profile design

Technical Information

  • Height: 52.6 mm
  • Rated voltage: 12 V / 24 V
  • Power consumption: 24 W (24 LEDs) / 36 W (12 LEDs)
  • Light function: Flashing signal for ICAO
  • Materials: Housing aluminium, Lens PC
  • Weight: 580 g
  • Temperature range: -40 °C to +60 °C
  • Temperature management: IC over-temperature shutdown
  • Protection class: IP67 / IP69K
  • Approvals: ICAO-tested, ECE-R10
  • Compliance: CISPR 25 Class 5
  • Mounting: Magnetic base
  • Connection: 3,200 mm cable, open end
  • Vibration resistance: 5.8 G / 3.8 G
  • Vehicle speed suitability: up to 120 km/h
Additional information
Brand

Hella
LED Colour

Amber
Housing Material

Aluminium
Lens Material

Polycarbonate
ECE Approvals

CISPR25

,

Class 5

,

ECE

,

IP67

,

IP69K

,

R10
Mount

Magnet
