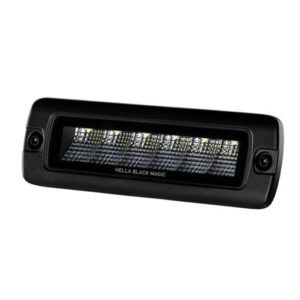

Hella 1FB 358 176-221 Black Magic LED Mini Light Bar 6.2 Flush Mount Flood
Hella 1FB 358 176-221 Black Magic LED Mini Light Bar 6.2 Flush Mount Flood
Back to products
Hella LED-Spotlight - Black Magic Edgeless Cube 2.7'' - 12/24V - 1400lm - Short distance lighting
Hella LED-Spotlight - Black Magic Edgeless Cube 2.7'' - 12/24V - 1400lm - Short distance lighting
Hella

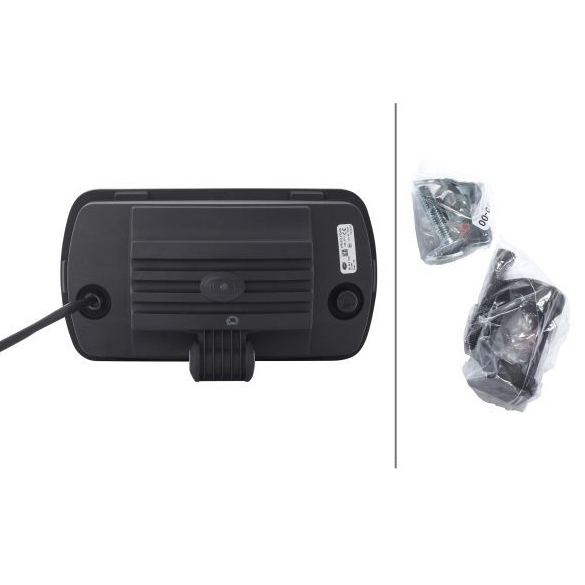

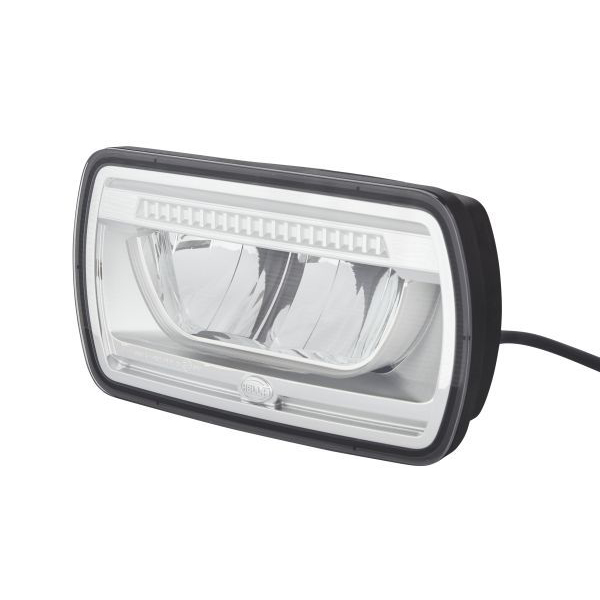

Hella LED-Spotlight – Jumbo LED – 12/24V

LED-Spotlight – Jumbo LED – 12/24V – rectangular – Reference number: 25 – Clear diffusing lens – Crystal clear – Cable: 800mm – left/right

Please Note - All product images are for illustration purposes only. Actual product will vary depending on the specifications of the product selected.
Add to quote
SKU: 1FE016773-001 Category:
Description

Jumbo LED – 100 % LED technology: Auxiliary high beam headlamp with state-of-the-art optics and impressive LED light pattern for individual style. Edge light technology intensifies the characteristic contours of the highly recognizable LED position light. Immediate response for attention-grabbing headlight flashing. Impact-resistant housing made of high-quality thermoplastic material. Sturdy fastening bracket made of zinc-coated sheet steel with wide adjustment range. Electronics components qualified according to automotive standard. Multi-voltage: suitable for 12 V and 24 V rated voltage. High beam with reference number 25 and with position light. ECE type-approved (ECE R149 high beam, ECE R148 position light, ECE R10 EMC). Weight 980 g (significantly lower weight than diecast aluminium housings of comparable size). Particularly energy-efficient and fuel-saving.
• Width: 238mm – Height: 132mm – Depth: 113mm – Fitting Depth: 23mm – Overall Height: 141mm – Lamp Type: LED – with LED – without cap
• Light functions: 2 – with high beam (LED)/with position light (LED)
• Fulfils ECE norm.: R148/R10/R149
• Synthetic Material Housing – Housing Colour: Black
• Fastening Type: Swivelling Mounting Bracket
• Auxiliary driving lamps with state-of-the-art optics and impressive LED light pattern for individual style
• EdgeLight technology intensifies the characteristic contour of the striking LED position light
• Delay-free light signal thanks to attention-grabbing flasher function
• Impact-resistant housing made of high-quality thermoplastic
• Particularly energy-efficient and fuel-saving

Additional information
Brand

Hella
