Adaptaflex AL16/M20/A/BL Straight Conduit Fitting - pack of 10
Adaptaflex AL16/M20/A/BL Straight Conduit Fitting - pack of 10
Adaptaflex

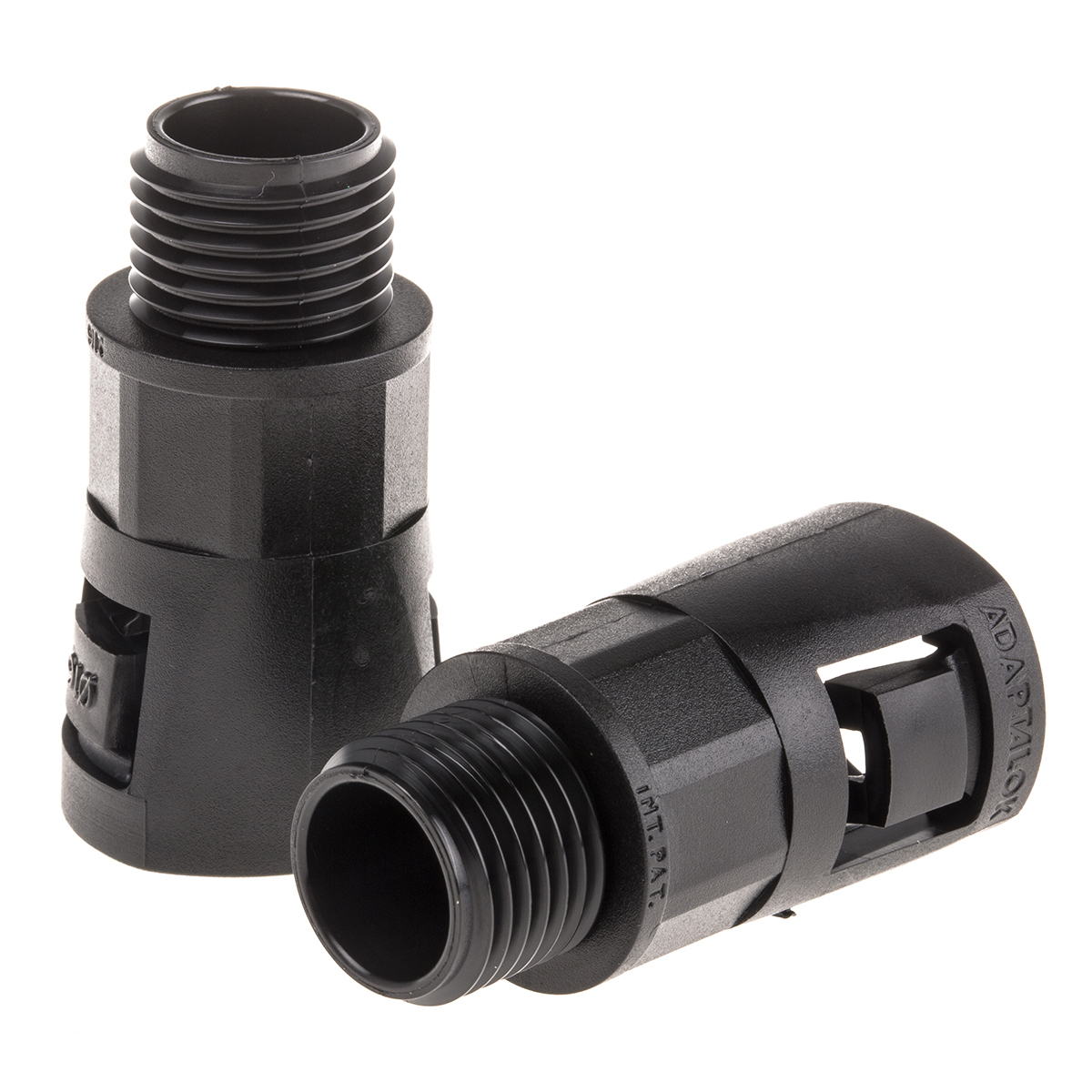

Adaptaflex AL16/M16/A/BL Straight Conduit Fitting – pack of 10

The Adaptaflex AL16/M16/A straight conduit fitting provides a secure, durable connection for 16 mm nominal conduit to M16 threaded entries or knockouts. Manufactured from high-quality polyamide (Nylon) 66 in black, it offers excellent mechanical strength, chemical resistance, and long service life. The fitting is part of the Adaptalok Type A range and is compatible with PAFS16 conduit.

Please Note - All product images are for illustration purposes only. Actual product will vary depending on the specifications of the product selected.
Add to quote
SKU: AL16/M16/A/BL Category:
Description

Adaptaflex AL16/M16/A/BL Straight Conduit Fitting – pack of 10

The Adaptaflex AL16/M16/A straight conduit fitting provides a secure, durable connection for 16 mm nominal conduit to M16 threaded entries or knockouts. Manufactured from high-quality polyamide (Nylon) 66 in black, it offers excellent mechanical strength, chemical resistance, and long service life. The fitting is part of the Adaptalok Type A range and is compatible with PAFS16 conduit.

Designed for straightforward installation, it comes with a locknut included and achieves IP66 protection, ensuring resistance to dust ingress and strong water jets. Suitable for demanding environments, it operates within a temperature range of -40 °C to +120 °C.

Technical information:

  • Nominal conduit size: 16 mm

  • Thread size: M16 × 1.5

  • Material: Polyamide 66

  • Conduit compatibility: PAFS16

  • IP rating: IP66

  • Locknut included: Yes

  • Weight: 7.3 g

  • Operating temperature: -40 °C to +120 °C

  • Range: Type A – Adaptalok

  • RoHS compliant: Yes

Adaptaflex Straight Conduit Fitting Application

This fitting is ideal for use in electrical and industrial installations where a robust, sealed connection is required between conduit and equipment enclosures, control panels, or machinery. Its IP66 rating makes it suitable for both indoor and outdoor applications, including environments exposed to moisture, dust, and vibration.

Additional information
Brand

Adaptaflex
Temperature Resistance

Standard Temperature
