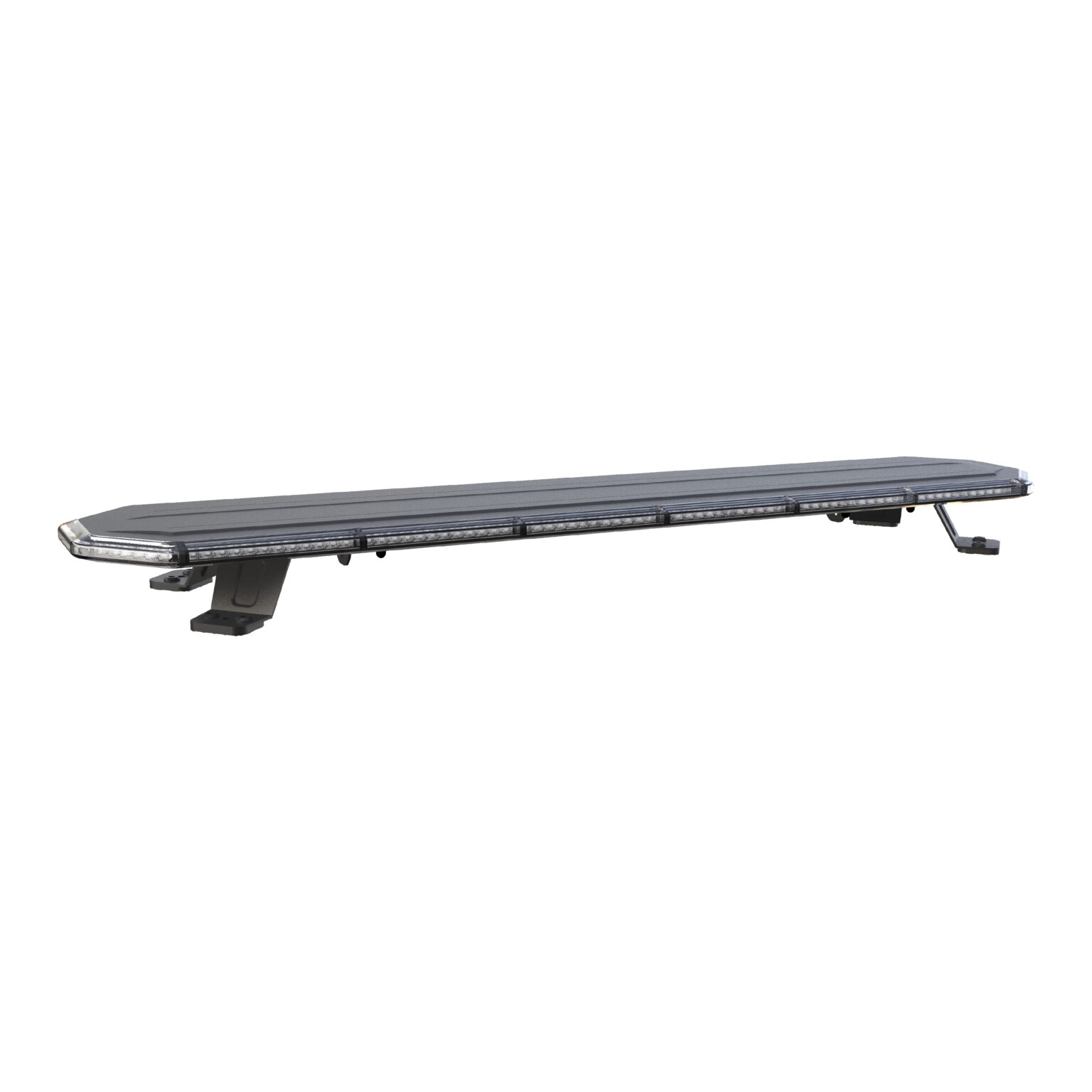

AES LED Ultra Slimline Lightbar 1070mm 3ft 6” Amber AESLB1070R65A

The AES LED Ultra Slimline Lightbar at 1070mm (3ft 6in) delivers powerful amber lighting in a compact, low-profile design. Fully populated and built for durability, this lightbar is ideal for use on emergency, utility or service vehicles.

Please Note - All product images are for illustration purposes only. Actual product will vary depending on the specifications of the product selected.
Add to quote
SKU: AESLB1070R65A Category:
Description

AES LED Ultra Slimline Lightbar 1070mm 3ft 6” Amber AESLB1070R65A

The AES LED Ultra Slimline Lightbar at 1070mm (3ft 6in) delivers powerful amber lighting in a compact, low-profile design. Fully populated and built for durability, this lightbar is ideal for use on emergency, utility or service vehicles.

It offers five flash modes, with the R65-approved day and night single flash set as the default. Additional functionality includes three directional arrow modes and cruise mode for greater visibility and control. The unit features a robust aluminium die-cast housing and a clear polycarbonate lens for long-term performance in all weather conditions.

AES LED Ultra Slimline Lightbar Key features:

  • Default R65-approved day/night single flash

  • Five selectable flash patterns

  • Three directional arrows and cruise mode

  • Rugged aluminium die-cast housing

  • Clear polycarbonate lens

  • IP67-rated for water and dust protection

Lightbar AESLB1070R65A Technical specifications:

  • Operating voltage: 12–24V

  • LED colour: amber

  • Lens material: polycarbonate

  • Lens colour: clear

  • Housing: aluminium die-cast

  • Bracket: powder coated steel

  • Mounting: 4-bolt bracket

  • IP rating: IP67

  • Approvals: ECE, R10, R65, CISPR25

  • Warranty: 3 year

A robust and reliable lighting solution for high-visibility requirements.

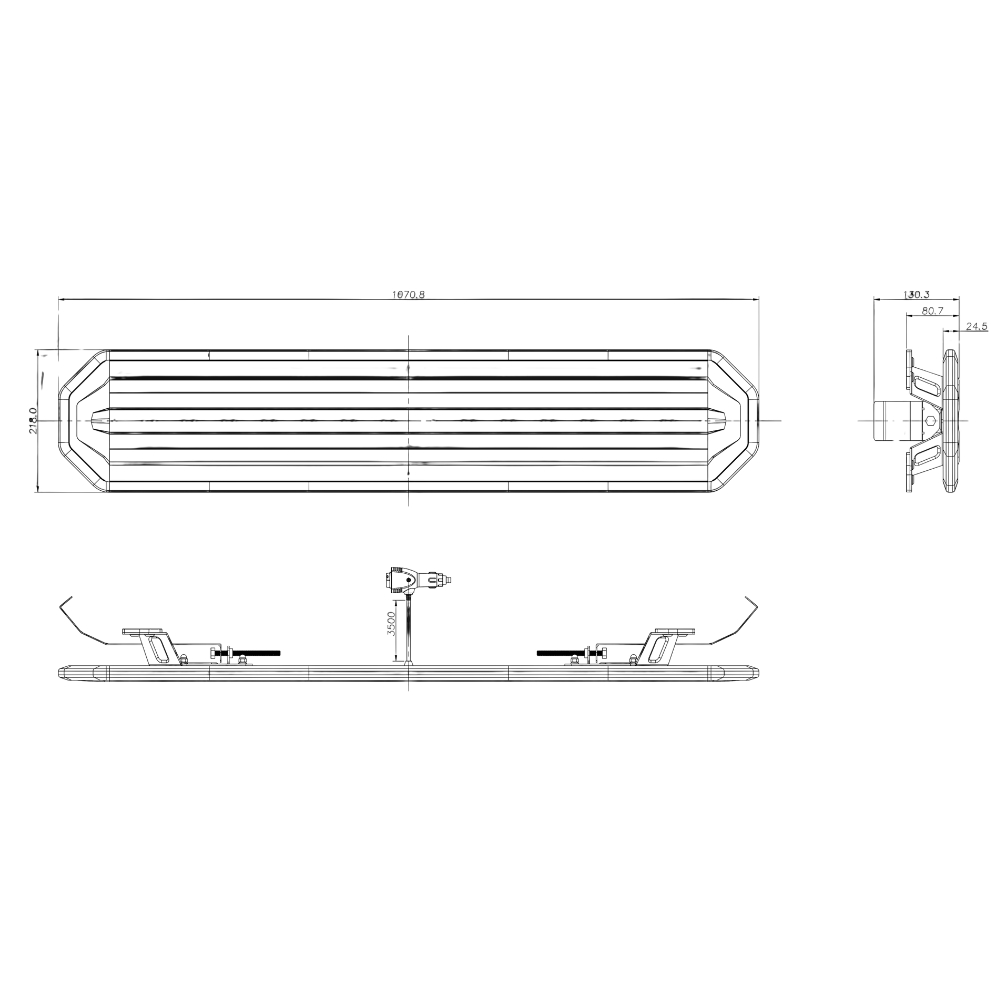

View the datasheet using the link.

Additional information
Brand

AES LED Lighting
LED Colour

Amber
Voltage

12V/24V
